Rubber Water Pressure Bag For Conveyor Belt Vulcanizer Press

Name: Rubber Water Pressure Bag For Conveyor Belt Vulcanizer Press
Brand: RUNNING
Price: 1000 USD

China Rubber Water Pressure Bag For Conveyor Belt Vulcanizer Press wholesale

Brand Name : RUNNING

Model Number : Universal

Certification : ISO9001 CE

Place of Origin : QINGDAO CHINA

MOQ : 1 set

Price : $1000~$2000 / set

Payment Terms : T/T, L/C

Supply Ability : 200sets/month

Delivery Time : 7 working days

Packaging Details : Plywood case

Applicatin : Conveyor Belt Splicing and Joint

Structure : Horizontal

Specification : As Equipment Size

Material : Rubber

Pressure : 2.5Mpa

Color : Black

Max. Pressure : 2.5 Mpa

Applied Machine Size : 1000mm Or Customized

Contact Now

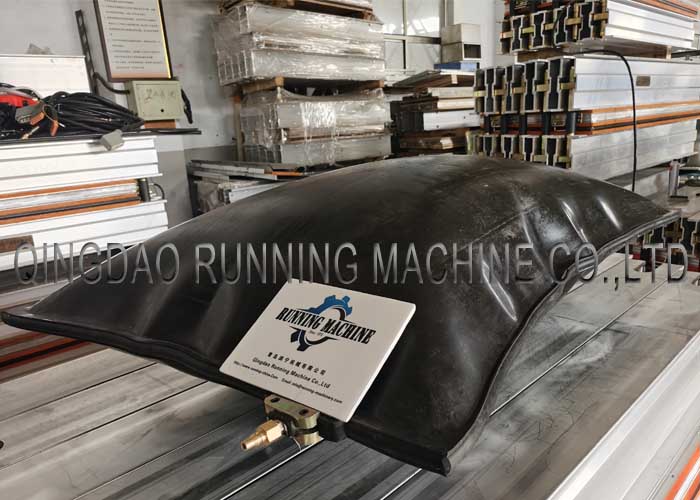

Rubber Pressurized Water Bag For Conveyor Belt Vulcanizer Press

Product Advantages

Our pressure water bag is made of rubber towards molding vulcanization.

Compared with original metal pressure board, it has the following advantages:

1. Light weight.

2. More balanced pressure.

3. Greater expension rate.

4. Lower rust risk.

5. Lower leakage rate.

6. Longer service life.

Rubber Water Pressure Bag For Conveyor Belt Vulcanizer Press

Matters Needing Attention

If vulcanizing machine pressure beam is separated, want to place a piece of the same specification on both sides pressure bag big board, protect the pressure water bag.

Technical Parameter

Model (mm)	Dimension for 18° (mm)	Dimension for 90° (mm)	Pressure (Mpa)	Weight (kg)	Expansive degree (mm)
1000*830	122083020	116083020	2.0-3.0	20	10-40
1200*830	142083020	136083020	2.0-3.0	23	10-40
1400*830	162083020	156083020	2.0-3.0	26	10-40
1600*830	182083020	176083020	2.0-3.0	29	10-40
1800*830	202083020	196083020	2.0-3.0	32	10-40

Model(mm)	Dimension for 18° (mm)	Dimension for 90° (mm)	Pressure (Mpa)	Weight (kg)	Expansive degree (mm)
1000*1000	1220100020	1160100020	2.0-3.0	20	10-40
1200*1000	1420100020	1360100020	2.0-3.0	23	10-40
1400*1000	1620100020	1560100020	2.0-3.0	26	10-40
1600*1000	1820100020	1760100020	2.0-3.0	29	10-40
1800*1000	2020100020	1960100020	2.0-3.0	32	10-40

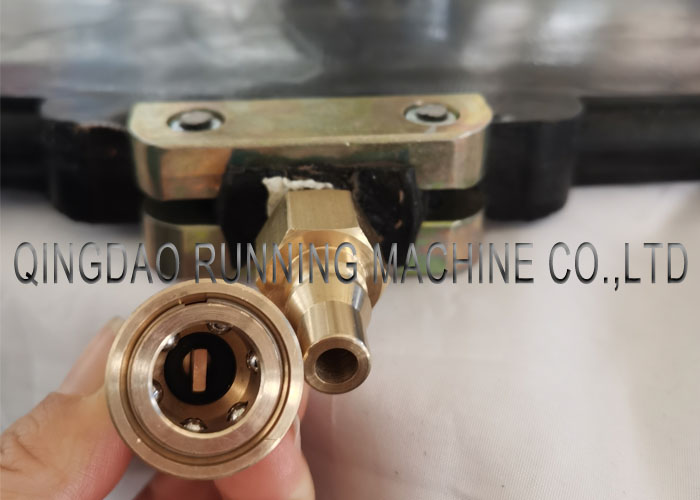

It is equipped quick connector for connecting pressure water pipe, very convenient for operation.

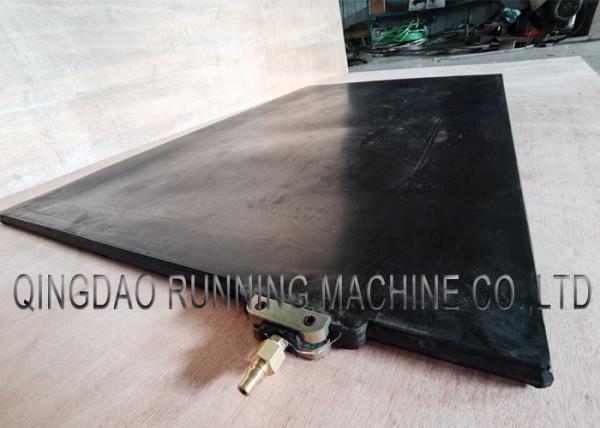

Rubber Water Pressure Bag For Conveyor Belt Vulcanizer Press

For more details, please feel free to contact us!
