Rubber Pressure Bag For Conveyor Belt Vulcanizing Machine 2.5 Mpa
Our company has successfully developed a rubber pressure water bag, which perfectly replaces the water pressure plate of the old vulcanizer. This revolutionary technology completely covers the pressurization technology of various conveyor belt vulcanizers, so that our vulcanizer products can be upgraded to a new level in the market. It has a leading edge in the competition, which is comparable to or even surpasses the imported products from Canada and Germany. Since then, it has laid the foundation of "RUNNING" conveyor belt leading technology in vulcanizer industry.
Product Advantages
1. Clean and tidy appearance, the rubber pressure water bag to use a rubber vulcanization molding.
2. The pressure is big, can make full expansion, no need for secondary pressure, can ensure that the conveyor belt vulcanizing machine belt joint uniform compression and repair process, the test safety pressure range is less than 3 Mpa, fully meet the requirements of vulcanizing machine fittings.
3. The use of light, our company produces rubber dampening water bag weighs the old board a quarter, and due to the increase of inflation rate, when installing equipment on both sides of the retaining bolt just tighten gently with a wrench.
4. The pressure range is big, our company produces rubber pressure around the water bag is only 2 cm frame, relative to the borders of the old board more than 5 cm, effectively increase the pressure area, thus improve the quality of vulcanization.
Matters Needing Attention
If vulcanizing machine pressure beam is separated, want to place a piece of the same specification on both sides pressure bag big board, protect the pressure water bag.
Technical Parameter
| Model (mm) | Dimension for 18° (mm) | Dimension for 90° (mm) | Pressure (Mpa) | Weight (kg) | Expansive degree (mm) |
| 1000*830 | 1220*830*20 | 1160*830*20 | 2.0-3.0 | 20 | 10-40 |
| 1200*830 | 1420*830*20 | 1360*830*20 | 2.0-3.0 | 23 | 10-40 |
| 1400*830 | 1620*830*20 | 1560*830*20 | 2.0-3.0 | 26 | 10-40 |
| 1600*830 | 1820*830*20 | 1760*830*20 | 2.0-3.0 | 29 | 10-40 |
| 1800*830 | 2020*830*20 | 1960*830*20 | 2.0-3.0 | 32 | 10-40 |
| Model(mm) | Dimension for 18° (mm) | Dimension for 90° (mm) | Pressure (Mpa) | Weight (kg) | Expansive degree (mm) |
| 1000*1000 | 1220*1000*20 | 1160*1000*20 | 2.0-3.0 | 20 | 10-40 |
| 1200*1000 | 1420*1000*20 | 1360*1000*20 | 2.0-3.0 | 23 | 10-40 |
| 1400*1000 | 1620*1000*20 | 1560*1000*20 | 2.0-3.0 | 26 | 10-40 |
| 1600*1000 | 1820*1000*20 | 1760*1000*20 | 2.0-3.0 | 29 | 10-40 |
| 1800*1000 | 2020*1000*20 | 1960*1000*20 | 2.0-3.0 | 32 | 10-40 |
For more details, please feel free to contact us!
Product Tags:
|
|

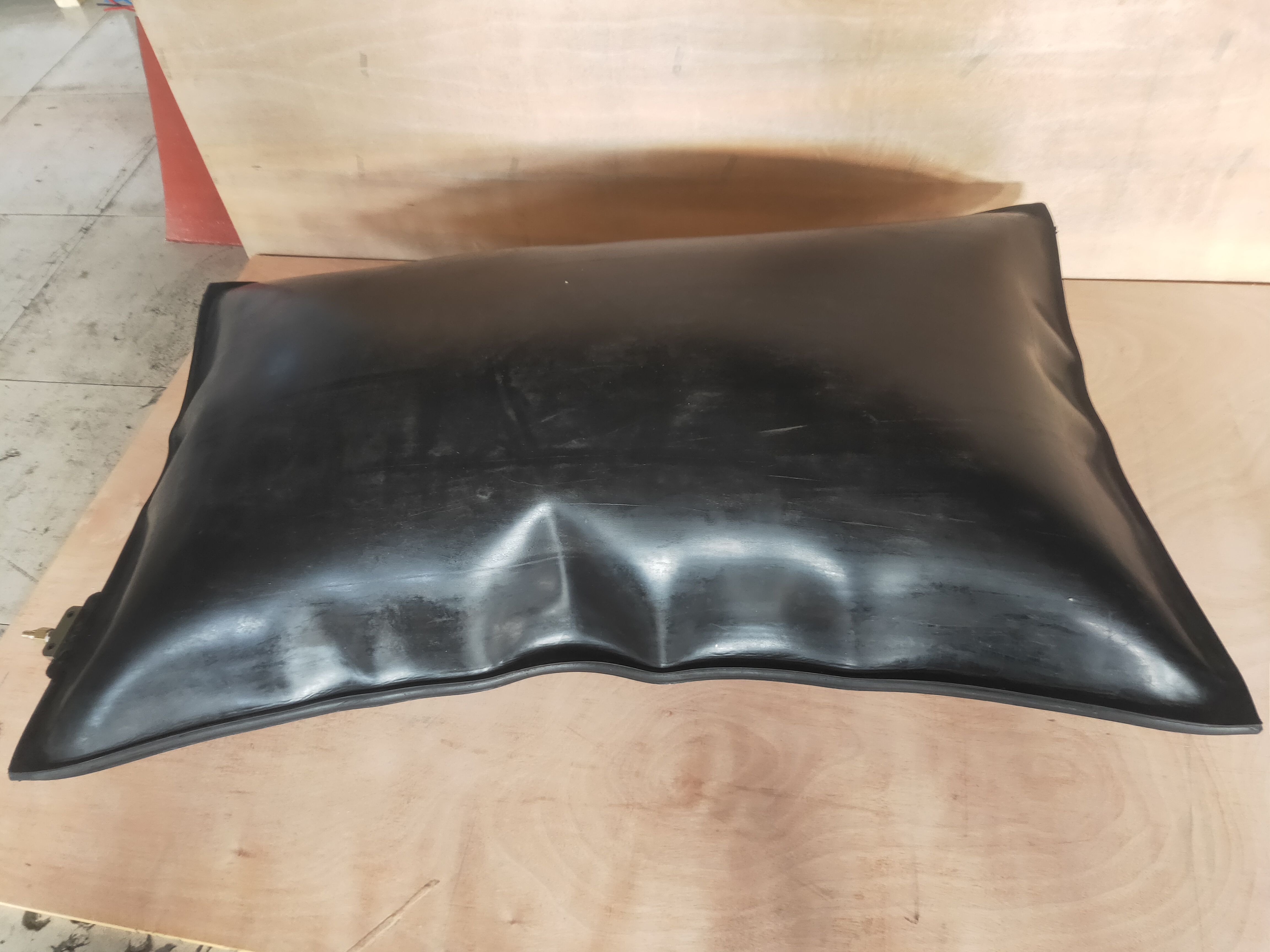

Black Conveyor Belt Vulcanizing Accessories 2.5Mpa Rubber Pressure Bag Images
|
