PVC PU Conveyor Belt Punching Machine Finger Shape Food Industry
Product description
Conveyor Belt Punching Machine is Widely used for punching of various materials and thicknesses of annular or flat rubber belts, conveyor belts, industrial belts, vacuum belts, conveyor belts, flat base belts, etc.
Features and Benefits of conveyor belt punching machine
1. High-efficiency, high-precision finger punching

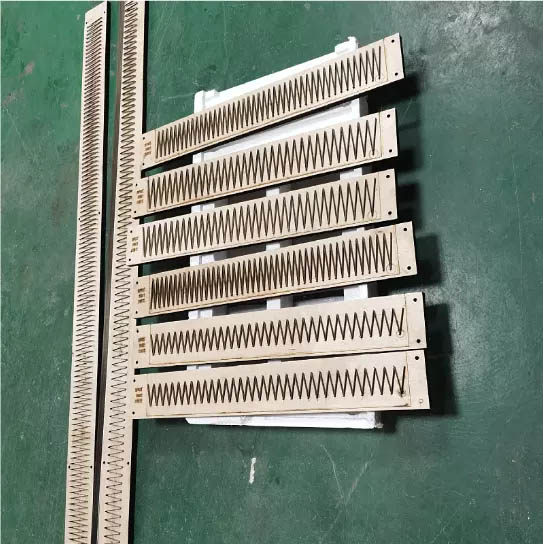

2. Sharp and durable finger blade materials single or double tooth is optional
3. driven by electric power and pneumatic-to-hydraulic pump
Application of conveyor belt punching machine
PVC PU conveyor belt punching machine is used for punching fingers on workshop before the conveyor belt splicing press work.
Both ends of the belt at same time, reduce belt material waste.
Fully automatic and pneumatic machine makes finger punching quick and easy. It is suitable for prepping finger splices for PVC and polyurethane belts up to 10mm thick.
Machine specifications of conveyor belt punching machine:
| | 1000 | 1600 | 2000 | 3000 |
| Max. belt width | 1000mm | 1600mm | 2000mm | 3000mm |
| Voltage (v) | 220V | 220V | 220V | 220V |
| Power(W) | 750W | 750W | 750W | 750W |
| Machine size | 1730*520*800 | 2335*520*800 | 2750*520*900 | 3700*520*900 |
| Machine Weight | 290kg | 425kg | 600kg | 900kg |
| Packing size(mm) | 1920*670*1050 | 2450*600*1100 | 2840*670*1180 | 3870*670*1040 |
| Packing weight | 320kg | 462kg | 680kg | 1048kg |
Shipping package of Conveyor Belt Punching Machine
We will use film to wrap the machine. then put into wooden box.
The normal package is wooden box.(Fumigation treatment).
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
