PVC PU Conveyor Belt Splicing Machine With Air Cooling

Brand Name : RUNNING

Model Number : ZLJ-1600

Certification : CE UL

Place of Origin : CHINA

MOQ : 1 set

Price : 3500 USD / SET

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 100 STES / M

Delivery Time : 7 DAYS

Packaging Details : wooden package

Type : Conveyor Belt Splicing Machine

Usage : PVC PU Conveyor Belt

Main raw material : aluminum

Other names : conveyor belt hot jointing machine

Cas no. : hot joint solution

Mf : hot splice solution

Cooling : Air Cooling

Product name : Conveyor belt repair adhesive

Contact Now

PVC PU Conveyor Belt Splicing Machine With Air Cooling

Conveyor Belt Splicing Machine is a ecnomic semi-auto finger punching machine using for preparation of Simple finger or finger over finger punching or triple punching, suit for pvc, pu and thermoplastic belt punching.

Steps to select your vulcanizing

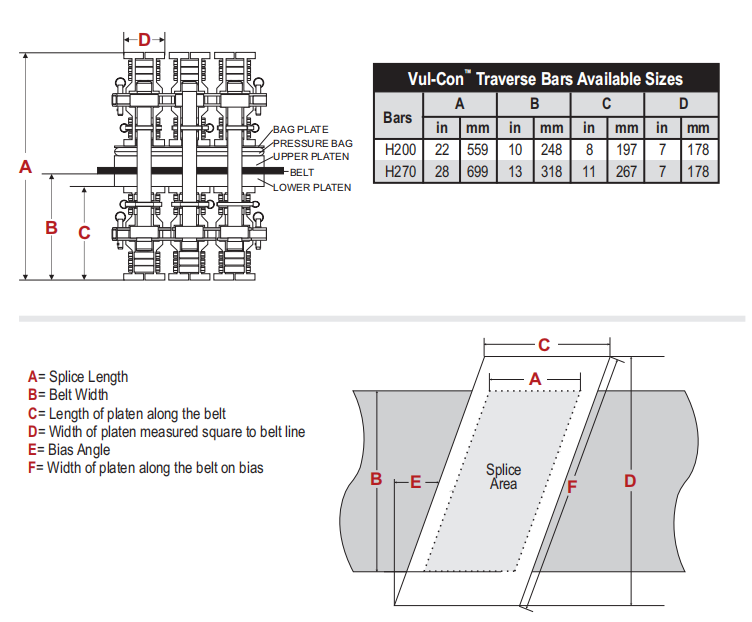

The proper model selection for a Sectional vulcanizer depends on determining dimensions C and D (see diagram).

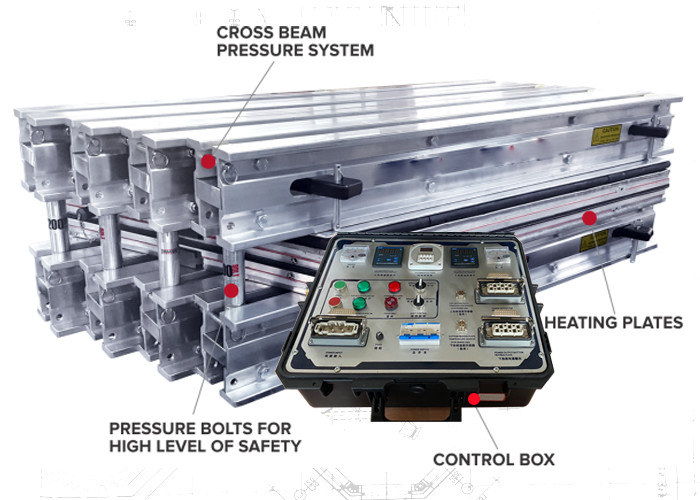

PVC PU Conveyor Belt Splicing Machine With Air Cooling

C - The platen length (C) is calculated by adding to the belt manufacturer’s recommended splice length.

  • 8 inches (200mm) for fabric belt
  • 12 inches (3000mm) for steel cord belt

D - The platen width (D) is determined by adding to the belt width.

  • 6 inches (150mm) for fabric belt
  • 8 inches (200mm) for steel cord belt

F - Width of the platen along the belt on bias. To figure this multiply by:

  • 1.07 for 22 degree bias angle
  • 1.05 for 17 degree bias angle

Dimensions C and D represent the outside platen dimensions. Custom sizes, rectangular configurations and multiple platen arrangements are also available upon request.

PVC PU Conveyor Belt Splicing Machine With Air Cooling

PVC PU Conveyor Belt Splicing Machine With Air CoolingPVC PU Conveyor Belt Splicing Machine With Air Cooling

Parameters

Model

Size of heating board: L×W

(mm)

Width for jointed rubber belt

(mm)

Total power

(kw)

Max. weight of component

(kg)

Measurement: L×W×H

(mm)

Total weight

(kg)

 Equipped device
Manual pump Electric control box
EPN-650 830×838 650 4 45.5 1142×830×750 445 1 1
EPN-800 830×1028 800 7.2 53.8 1320×830×750 550 1 1
EPN-1000 830×1188 1000 8.4 60.5 1440×830×750 625 1 1
EPN-1200 830×1458 1200 10.8 69.3 1680×830×750 795 1 1
EPN-1400 830×1638 1400 11.4 78.8 1950×830×750 911 1 1
EPN-1600 830×1808 1600 13.2 89.7 2060×830×980 1056 1 1
EPN-1800 830×2078 1800 15 98.3 2320×830×980 1198 1 1
EPN-2000 830×2328 2000 16.8 107.4 2582×830×980 1315 1 1
EPN-2200 830×2508 2200 18 130.5 2842×830×980 1422 1 1
EPN-2400 830×2638 2400 19.5 140 2950×830×980 1500 1 1
EPN-2600 830×2828 2600 21.8 150 3128×830×980 1628 1 1
