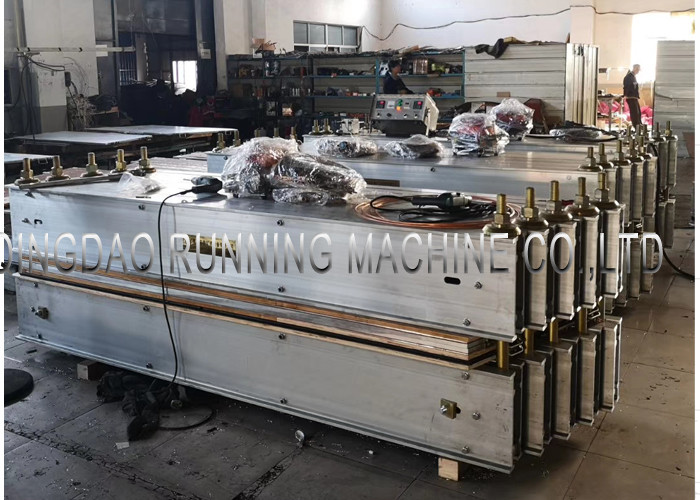

1600mm Assembled Conveyor Belt Splicing Machine with Lightweight Aluminum Beam
Usage:

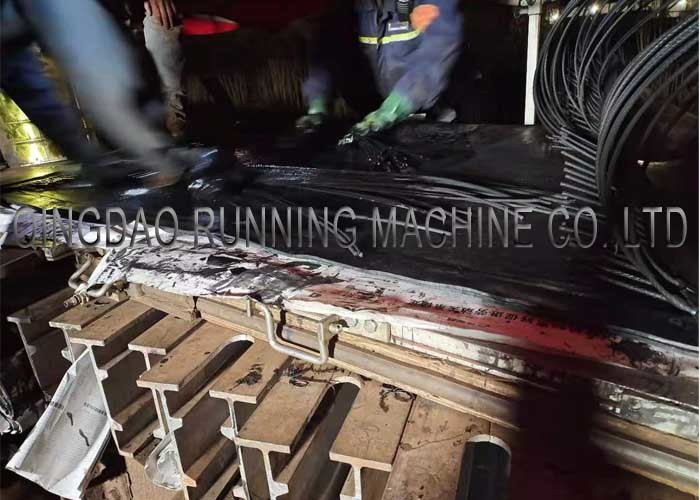

Conveyor belt splicing is the process of joining together two pieces of conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt. Because there are so many industries in which conveyor systems are employed, there are many types of conveyor belts and components. In order to correctly splice a belt, the type of belt, speed of conveyor belt system, materials traveling on the belt and conveyor belt environment must be taken into account. A conveyor belt splice is important in relation to the productivity of the belt. So the conveyor belt splicing press machine is the most important key.
The conveyor belt splicing is equivalent to 60%-80% of the strength of the conveyor belt itself. ( Jointing with cold viscose is equivalent to 40%-55% of the strength of the conveyor belt itself; The buckle (mechanical joint) connection is only 28%-45%).
Machine specification of rubber conveyor belt splicing machine:
| Model | Belt Width (mm) | Power(kw) | Dimensions (L*W*H mm) | Weight(kg) | Single Piece Weight(kg) |
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
The heating element of conveyor belt splicing machine is made of rubber coated resistance heating wire. Compare with ordinary heater, it's more stable and faster heating speed.
The pressurizing element - Water pressure bladder is made of rubber, compared with ordinary metal pressure board, it has lighter weight, more balanced pressure, no rusting risk, lower leakage rish and longer service life.
Shipping package of conveyor belt jointing machine:
There is a lot of other machines for your choice, please feel free to contact us if you need more machine details.
