Rubber Belt Joining Press Vulcaniser /Rubber Belt Splicing Machine
When order, pls supply below information, our technician will make a solution for you, or pls choose one model from bottom traditional sizes table
- Max belt width
- Heating platen length (or pls supply belt manufacturer’s recommended splice length)
- What kind of belt, light duty belts or heavy duty belts, belt model No.
- Working Voltage
- Pressure requirements (as our experience, normal is 0.8Mpa, for EP belts is 1.2Mpa, for steel cord belts is 1.4Mpa)
- Degree of heating platen (standard will be 22 degree)
Normal vulcanizer model sheet:
A= Splice Length
B= Bet Width
C=Length of platen along the belt
D= Width of platen
measured square to beltline
E= Bias Ange
F=Width of platen along the belt on bias
Application of conveyor belt splicing machine
Portable type conveyor belt joint vulcanizing press is mainly applied to industries for splicing and repairing conveyor belts such as metallurgy, mine, power plant, port, dock, construction material cement, chemical industry, tobacco, and food automatic line field.
Features of conveyor belt splicing machine
1. Made of aluminum alloy, light weight,
2. Easy installation and removal, easy to handle.
3. Suppress water bag:
1) Light weight, it is the 1/4 weight of the ordinary.
2) Large expansion amplitude.
3) Uniform pressure and the pressure can reach 3.0MPa.
4) No water leakage and long life.
4. Automatic temperature control and timing.
Technical Parameters of conveyor belt splicing machine
| Model | Applied Width(mm) | Motor power | Dimension(LxWxH)(mm) | Weight(KG) |
| ZLJ-800x830 | 800 | 11.2 | 1280x830x630 | 650 |
| ZLJ-1000x830 | 1000 | 14.1 | 1480x830x630 | 700 |
| ZLJ-1200x830 | 1200 | 16.5 | 1680x830x710 | 900 |
| ZLJ-1400x830 | 1400 | 18.6 | 1930x830x760 | 1100 |
| ZLJ-1600x830 | 1600 | 21.1 | 2140x830x800 | 1320 |
| ZLJ-1800x830 | 1800 | 23.3 | 2300x830x850 | 1480 |
| ZLJ-2000x830 | 2000 | 25.6 | 2600x830x950 | 1860 |
Except the above models, we can design & make joint vulcanizer machine as your requirement, non-standard machines can be customized.
Our Advantages
AUTOMATIC CONTROL BOX
With automatic temperature control, security alarm and automatically switch off the power. The control box can monitor the temperature of 3-5 different points on each heating platen at the same time to ensure the result of jointing.
PRESSURE SYSTEM

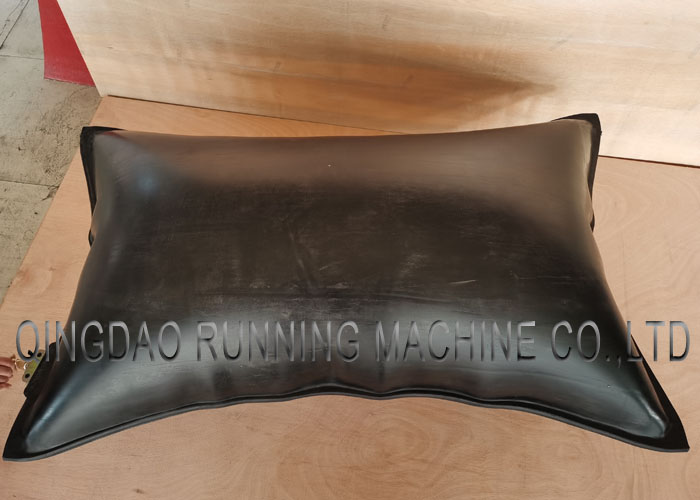

Signature RUNNING "Pressure Bag" uniform pressure system is lighter up to 4 times than the outdated pressure bag.
The pressure bag can reach full expansion in one time and ensure the uniform pressure up to 3.0MPa.
HEATING PLATEN
Custom extruded plank, silicone heating elements (up to 180°C/356°F), and durable composite insulating packaging are used to construct a flexible platen that contours to belt irregularities.
It takes 15~25mins rise up to vulcanizing temperature (about 145°C).
The flush "quick connect" make smooth profile. Recessed power connections are sealed for moisture resistance.
COOLING SYSTEM (Option Available)
Custom "Extruded Plank" cooling system within platens is made by several cuprum pipelines, it only takes about 20mins to drop the temperature down to 60°C.
PRESSURE PUMP
Automatic mute pressure pump own the features as smaller size, lighter weight and high impact-resistance. Compared with the manual pump, the operating pressure can be 23kg/cm2 (2.3MPa).
EMBEDDED CONNECTOR
Upgrading to embedded water-cooled connector can effectively prevent damage caused by collision and prolong service life.
Package
The normal package is wooden box(Size: L*W*H). If export to european countries,the wooden box will be fumigated.If container is too tiger,we will use pe film for packing or pack it according to customers special request.
Our Services
Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
